Rectangular Enameled Aluminum Wire
| ♦Description: | This round enameled wire is made of pure aluminum with insulation. And the magnet wire is used for interchanging electrical energy with magnetic energy. The series is one of the hot-sale products of Xiandeng. | |||||||
| ♦Specifications: | As an experienced producer of magnet aluminum wire, we can provide a wire gauge of 0.30~5.00mm & a thermal class of 155~220℃. | |||||||

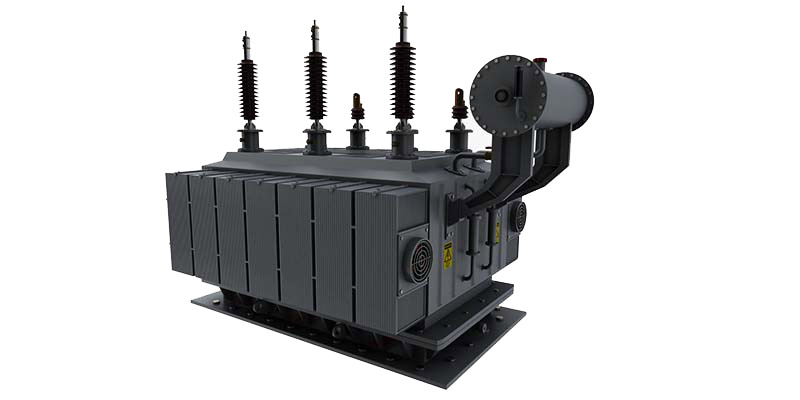

| ♦Application: | The enameled round aluminum wire is specially used for household appliances, transformer winding, and industrial motor winding. | |||||||
| ♦Properties: | (a) good thermal stability, (b) excellent mechanical properties as low spring back and scratch resistance, (c) excellent heat, cryogen, solvent resistance,(d) uniformity of insulation, and (e) high breakdown voltage, etc. | |||||||
| Product Model | Insulation Type | Thermal Class | Wire Gauge | NationalStandard | IECStandard | NEMA Standard | Application |
| PEWAR/155 | Polyester | 155℃ (F) | 5-65 mm² | Q/ZXD 03.2-2012 | - | - | Transformer, Reactor, Generator |
| EIWAR/180 | Polyester-imide | 180℃ (H) | 5-65 mm² | Q/ZXD 03.3-2012 | - | - | |
| EI/AIWAR/200 | Polyester or Polyester-imide overcoated polyamide-imide |
200℃ (C) | 5-65 mm² | Q/ZXD 03.4-2012 | - | - | |
| EI/AIWAR/220 | Polyester or Polyester-imide overcoated polyamide-imide |
220℃ (C) | 5-65 mm² | Enterprise standard | - | MW 36-A |
Collection
Notes:
1. It ought to be assessed by the technical department, If the thickness is less than 1.50mm or the ratio of width to thickness is larger than 8.

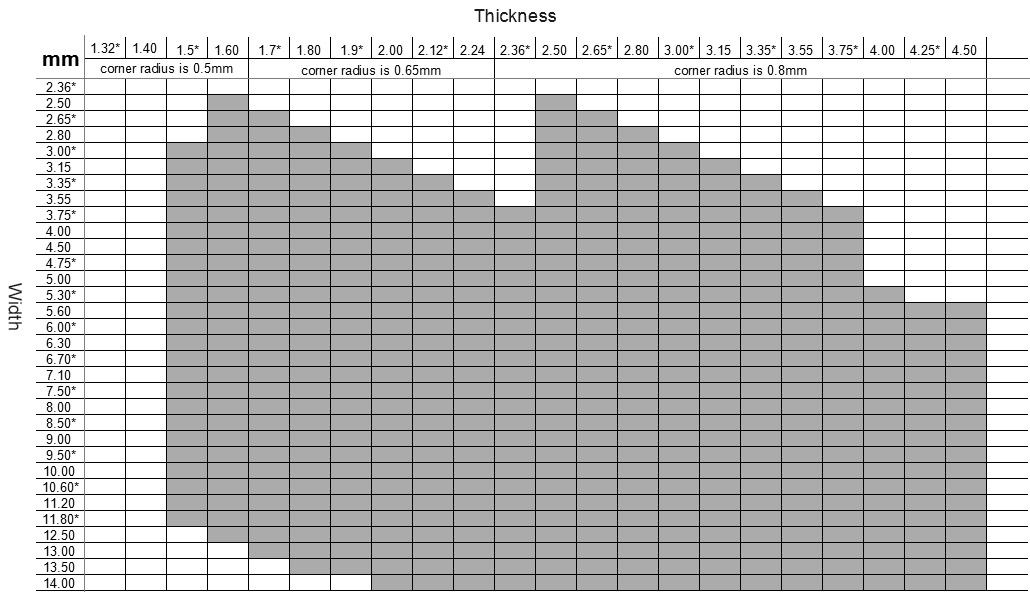

2. It is recommended your priority is the size series of R2 (without *), then the size series of R40 (with *). Non-standard specifications ought to be assessed.
3. Due to the particularity of flat wire, some specifications need a certain manufacturing cycle and costs for mold.
4. There is a minimum order requirement for the flat wire.
