Rectangular Enameled Copper Wire
| ♦Description: | Rectangular magnet wire is made from the base conductor in a rectangular or square shape, and the size mentioned as width and thickness. The conductor of thickness. The conductor of this series is pure copper. It has become one of Xiandeng's featured products. | ||||||
| ♦Specifications: | This strip wire series is engineered to meet a wide wire gauge of 1~65 mm² & a thermal class of 130~240℃. | ||||||
| ♦Application： | We're a reliable rectangular wire supplier for industry appliances of Auto motor, Transformer, and Generator, etc. | ||||||
| ♦Properties： | (a) good electrical properties like the uniformity of breakdown voltage, (b) strong film adhesion, (c) excellent heat, chemical and cryogen resistance, (d) abrasion resistance, and (e) excellent heat shock resistance, etc. | ||||||
| Product Model | Insulation Type | Thermal Class | Wire Gauge | NationalStandard | IECStandard | NEMA Standard | Application |
| PEWR/130 | Polyester | 130℃ (B) | 3-65 mm² | GB/T 7095.7 | - | - | Transformer, Auto motor, Generator |
| PEWR/155 | Polyester | 155℃ (F) | 3-65 mm² | GB/T 7095.3 | IEC 60317-16 | - | |
| EIWR/180 | Polyester-imide | 180℃ (H) | 3-65 mm² | GB/T 6109.4 | IEC 60317-28 | - | |
| SEIWR/180 | Solderable Polyester-imide | 180℃ (H) | 1-40 mm² | Enterprise standard | - | - | |
| EI/AIWR/200 | Polyester or Polyester-imide overcoated polyamide-imide | 200℃ (C) | 3-65 mm² | GB/T 6109.6 | IEC 60317-29 | MW 36-C | |
| AIWR/220 | Polyamide-imide | 220℃ (C) | 1-40 mm² | - | - | MW 38-C | New energy auto motor |
| PIWR/220 | Polyimide | 220℃ (C) | 1-40 mm² | Enterprise standard | - | - | |
| PIWR/240 | Aromatic polyimide | 240℃ (C) | 1-40 mm² | GB/T 7095.5 | IEC 60317-47 | MW 20-C |
Collection
Notes:
1. It ought to be assessed by the technical department, If the ratio of width to thickness is larger than 8.

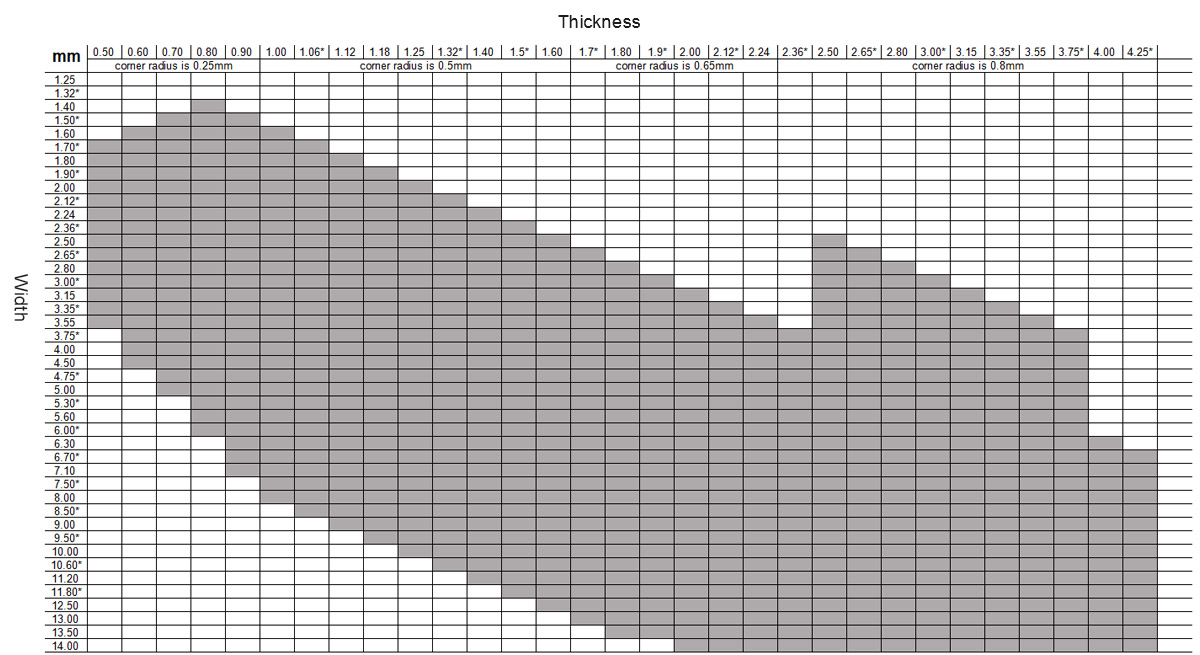

2. It is recommended your priority is the size series of R2 (without *), then the size series of R40 (with *). Non-standard specifications ought to be assessed.
3. Due to the particularity of flat wire, some specifications need a certain manufacturing cycle and costs for mold.
4. There is a minimum order requirement for the flat wire.
